System Breakdown
Schematics
Front
Back
Components

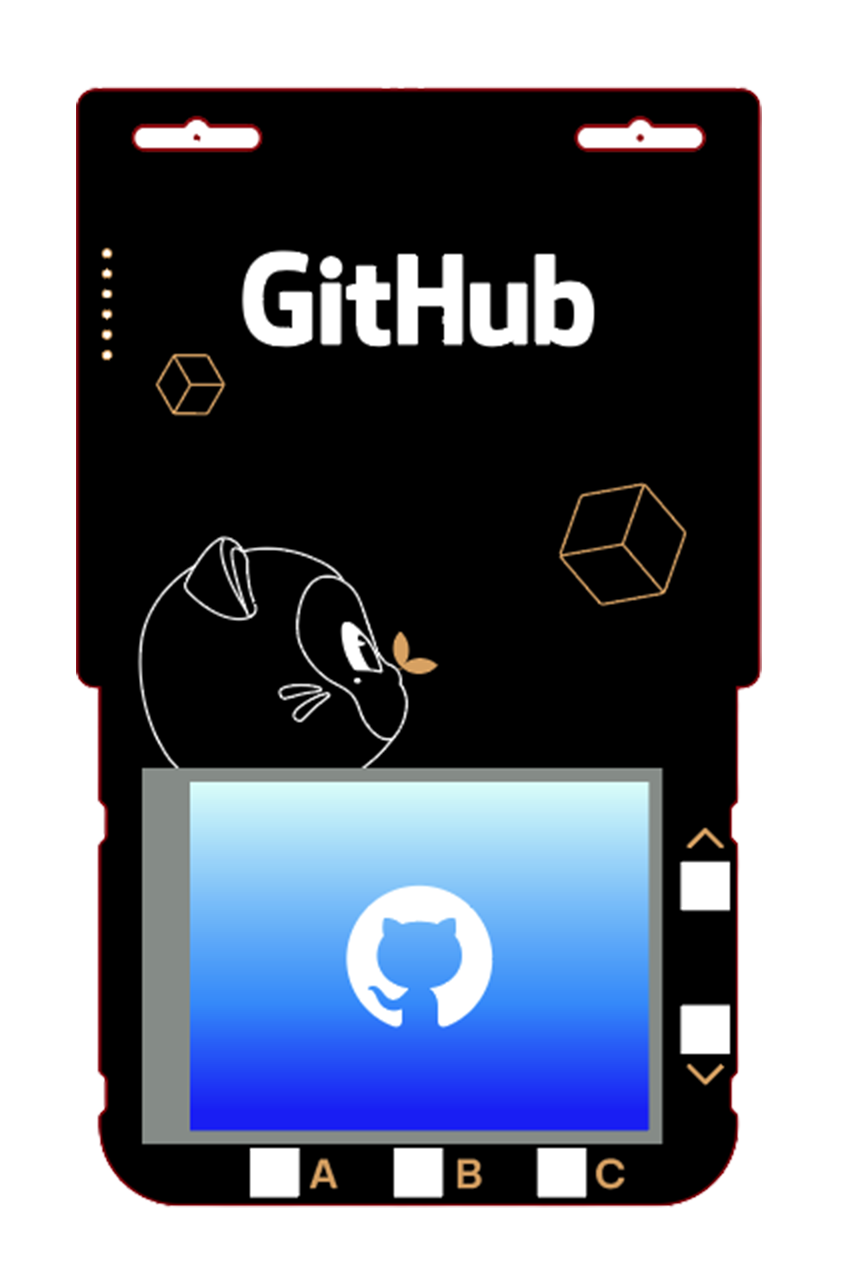

Front
- Display
- Full-color TFT
- Buttons
- A, B, C, UP, DOWN

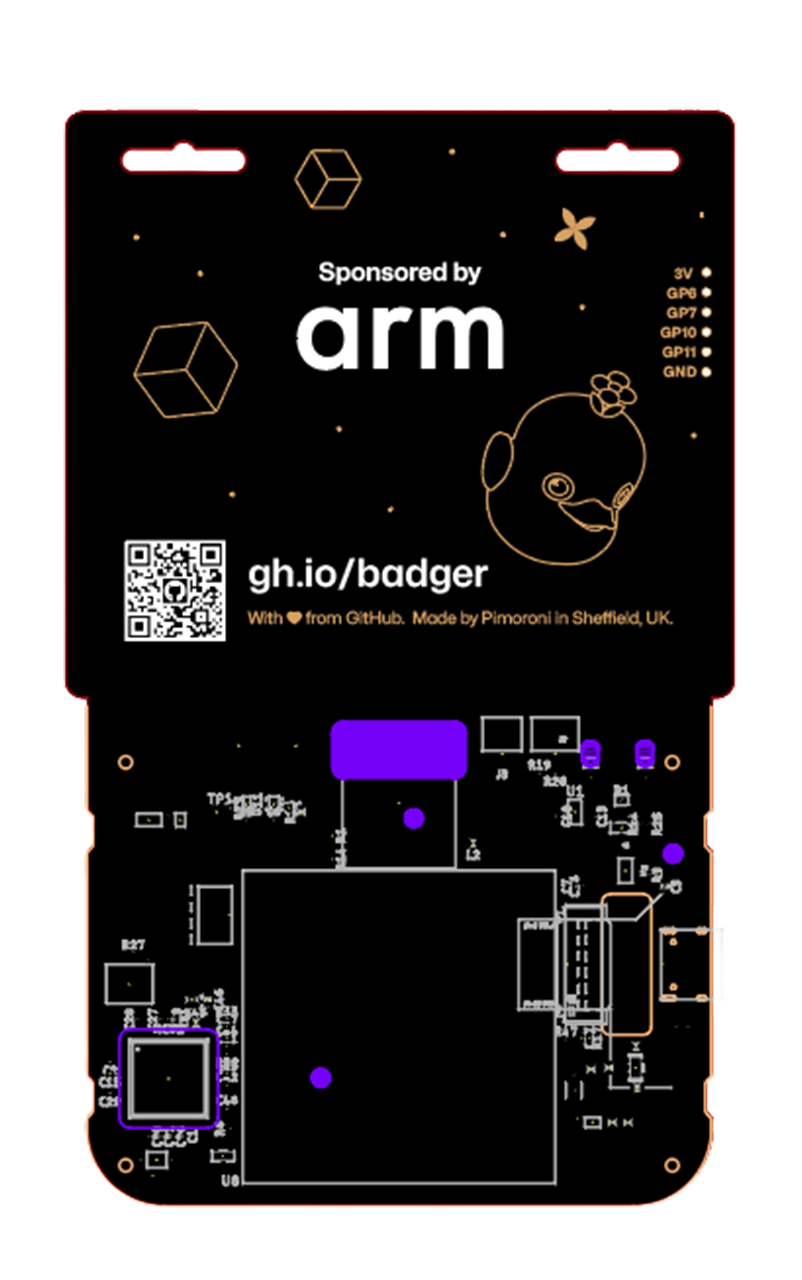

Back
- USB-C
- Power, charging, programming
- Battery
- JST Li-Po connector
- QWIIC
- I2C connector
- GPIO
- 3V, GP6, GP7, GP10, GP11, GND
- Processor
- RP2350B
Specifications
RP2350B
150MHz
520KB RAM
4MB Flash
Display
Full-color TFT
Wireless
WiFi 4
Bluetooth 5.0
Power
USB-C
Li-Po
GPIO
GPIO
I2C
SPI
Programming
Python
C++
MicroPython
